4.  Projects using Intrinsic and Professional ActiveX Controls(3)

3. Project involving Drag-Drop Operations:

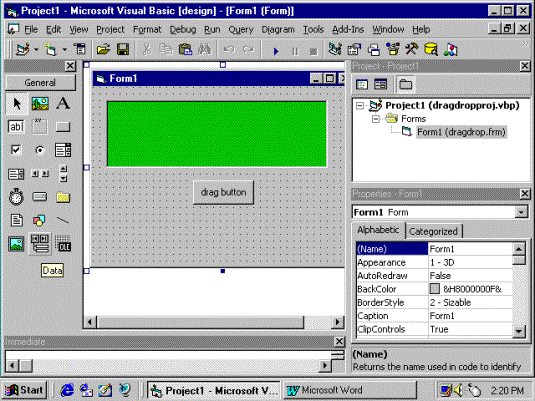

Many of the controls in VB-5 have a DragMode property which determines whether a control can be dragged or not with the mouse.   In this project the drag  property of a command button is illustrated by dragging it over a PictureBox Control.   Drag a PictureBox and a commands button and position them as shown in the figure 5.  Set the DragMode property of the button as 1-automatic.   Open the code window  of the PictureBox and enter the code as shown in the figure 5a.

                                    Figure 5

Private Sub Picture1_DragDrop(Source As Control, X As Single, Y As Single)

Picture1.BackColor = vbBlue

End Sub

Private Sub Picture1_DragOver(Source As Control, X As Single, Y As Single, State As Integer)

If State = 0 Then Picture1.BackColor = vbRed

If State = 2 Then Form1.Caption = "source control moves over the PictureBox"

If State = 1 Then

Picture1.BackColor = vbGreen

Form1.Caption = "Drag and Drop demo"

End If

End Sub

                   Figure 5a

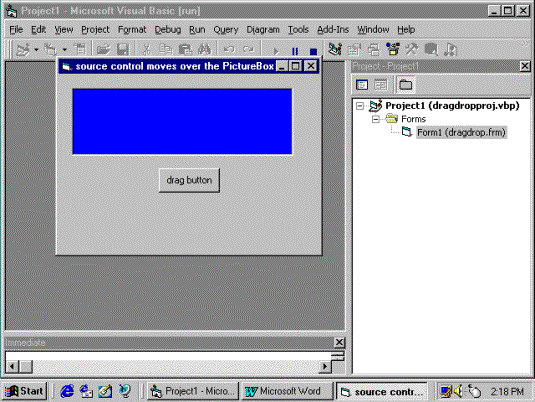

On running the project you will notice that when the button is first dragged over the picture box, it is paintede red.   When the button leaves the picture box, the picture box is painted green.   If the user drops the button while it is over the picture box, the picure box is painted blue.   The run mode window is shown in the figure 6.

                                                    Figure 6
