Visual Basic 6.0


	VISUAL BASIC_6

4. Projects using Intrinsic and Professional ActiveX Controls(3)

4. Project using WebBrowser:

The WebBrowser ActiveX control acts like an Internet Explorer and so can be used to view all html documents, Thus it becomes possible to view all web pages from within Visual Basic.

oject using WebBrowser:

Select Microsoft Internet Controls from the Component Dialog box and place them in the Toolbox. The Web Browser control appears as a globe in the tool box. Drag a Web Browser, a common dialog and a command button control in the design form. The WebBrowser will appear as empty rectangle and increase its size to the maximum extent possible. Change the Caption property of the command button as ‘browse’. The design window will look as shown in the figure7.

Figure 7

Entering the Event Code:

Open the code window by double clicking the command button and enter the code as shown in the figure 7a.

Private Sub Command1_Click()

CommonDialog1.ShowOpen

If CommonDialog1.filename <> "" Then

WebBrowser1.Navigate CommonDialog1.filename

End If

End Sub

Figure 7a

Running the Project:

Select Start from the Run Menu. Then click the command button. The Commmon dialog box will help you by displaying the file open dialog box. Browse through the folders and select a html document. In this case we have selected a html document containing a VBScript Program for printing the calender for the current month. The html document looks as in the figure 7b. The run mode window appears as in the figure 8. You will ,find that the calender is displayed for the current month. In fact you can browse any HTML document with this Web Browser.

<html>

dim imonth, thisdate, nextday, cday

imonth = month(date)

document.write "<center>"

document.write "<font face='verdanna' size=5>"

document.write "Calendar for " &date

document.write "<p>"

document.write "<table cellpadding=10 border><tr>"

document.write "<td><b>sun<td><b>mon<td><b>tue<td><b>

wed<td><b>thu<td><b>fri<td><b>sat"

document.write "<tr>"

thisdate=DateSerial(year(date), month(date), 1)

nextday=1

for cday = 1 to 7

if WeekDay(thisdate) > cday Then

document.write "<td></td>"

else

document.write "<td align=center> <font size=3>" & nextday

& "</td>"

nextday = nextday + 1

thisdate =DateSerial(year(date), imonth, nextday)

end if

document.write "<tr>"

weekdays = 1

while month(thisdate) = imonth

document.write "<td align=center><font size=3>" & nextday

& "</td>"

nextday = nextday + 1

weekdays = weekdays + 1

if weekdays > 7 Then

weekdays = 1

document.write "<tr>"

end if

thisdate = DateSerial(year(date), imonth, nextday)

wend

document.write "</table>"

document.write "</center>"

</script>

</html>

Figure 7b

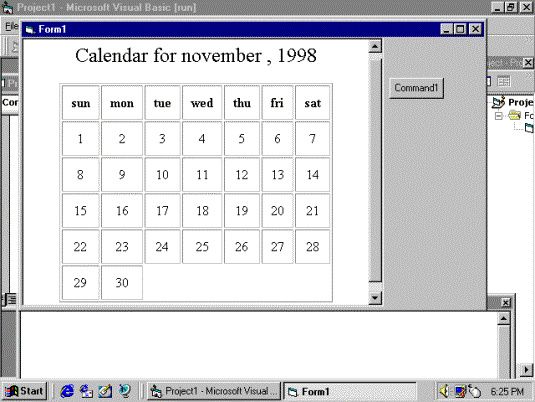

Figure 8
