12.  Database Projects

Databases and Database Management Systems:

2. Binding Data Control with Text Boxes:

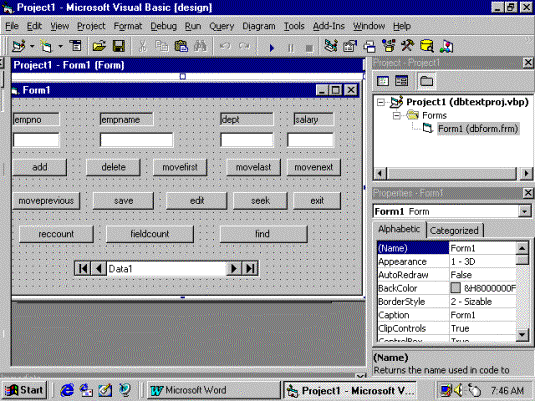

In the last example the Data Control was bound to the DBGrid control so that the output was displayed in the DBGrid box.   This time we will bind the Data control with text boxes binding each field of the database with a text box.    In addition we will add facilities for add, delete, edit, find and seek methods to operate on the database.   Drag a Data Control,  four label boxes, four text boxes and thirteen command buttons, size them, caption them and position them as shown in the figure 3.

                            Figure 3

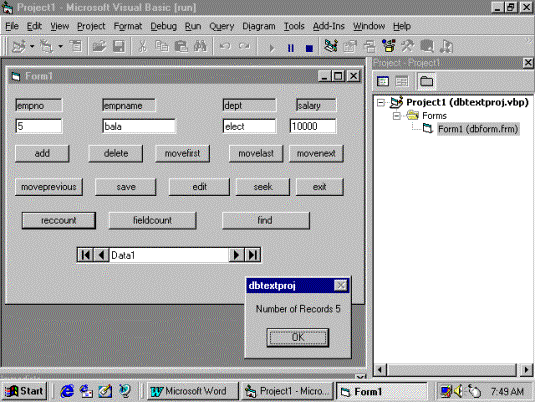

Set the Database Name property by actual browsing and the record source property for the Data control object.     For each of the text box set the data source property as D1 and data field property as the name of the field which it is to display.  It may be noted that the seek method will work only with Table type  recordset and so set the Recordset type property of the data control  as ‘0-Table’.  For working with the Find method, set the Recordset type property as 1-Dynaset.  Open the code window for the different command buttons and enter the codes as shown in the figure 3a.   Run the project and check the function of each command button.   A typical output is shown in the figure 4.

Private Sub add_Click()

Data1.Recordset.AddNew

Text1.SetFocus

End Sub

Private Sub delete_Click()

Data1.Recordset.delete

End Sub

Private Sub edit_Click()

Data1.Recordset.edit

End Sub

Private Sub exit_Click()

Unload Me

End Sub

Private Sub fieldcount_Click()

MsgBox "Number of fields " & Data1.Recordset.Fields.Count

End Sub

Private Sub find_Click()

Dim c As String

c = InputBox("enter the empno whose record is required")

Data1.Recordset.FindFirst "empno =" & "'" & c & "'"

End Sub

Private Sub movefirst_Click()

Data1.Recordset.movefirst

End Sub

Private Sub movelast_Click()

Data1.Recordset.movelast

End Sub

Private Sub movenext_Click()

Data1.Recordset.movenext

If Data1.Recordset.EOF Then

MsgBox "you are on the last record"

Data1.Recordset.movelast

End If

End Sub

Private Sub moveprevious_Click()

Data1.Recordset.moveprevious

If Data1.Recordset.BOF Then

MsgBox "you are on the first record"

Data1.Recordset.movefirst

End If

End Sub

Private Sub reccount_Click()

Data1.Recordset.movelast

MsgBox "Number of Records " & Data1.Recordset.RecordCount

End Sub

Private Sub save_Click()

Data1.Recordset.Update

End Sub

Private Sub seek_Click()

Dim c

c = InputBox("enter the empno whose record is required")

Data1.Recordset.Index = "empno"

Data1.Recordset.seek "=", c

End Sub

     Figure 3a

          Figure 4
