12.  Database Projects

Project using the DBGrid Control to display the Database Table:

     Let  us now consider a project to display the database table we created earlier in a DBGrid Box.

Controls used in this Project:

     In this example project we are going to use the following Controls.

1. DB Grid Control   (1)

2. Data Control   (1)

Start from the opening Design Window,  drag the above controls in the form, size them and locate them in the form  as shown in the figure 9.   The DBGrid control is bound to the database control  by setting its data source property as ‘Data1’   The Data control is connected to the database by making the Database name property as ‘payroll’ and the Record Source property as ‘employee’.   You must give the database name along with the directory structure.   There is no coding for this project.  Save and run the project.   The database table is displayed in the DBGrid box as shown in the figure 10.

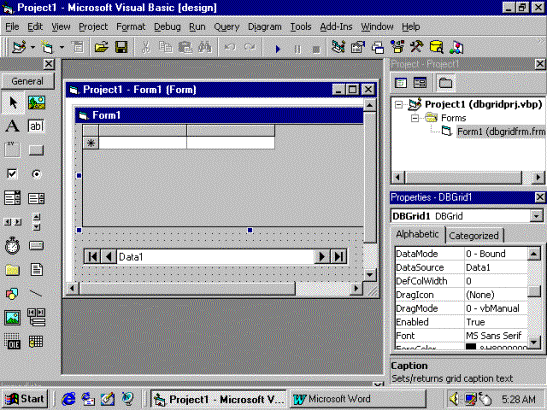

                                        Figure 9

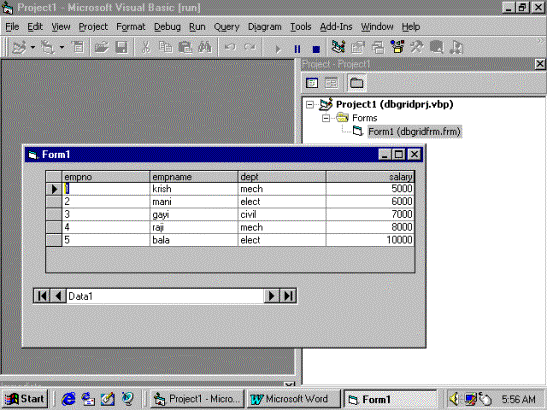

                        Figure 10

Suppose you want to view only selected records based on some criteria, enter the criteria as the Record Source Property of the Data Control as:

   Select * from employee where salary  < 10000 and  salary > 5000

The output will appear as shown in the figure 11.

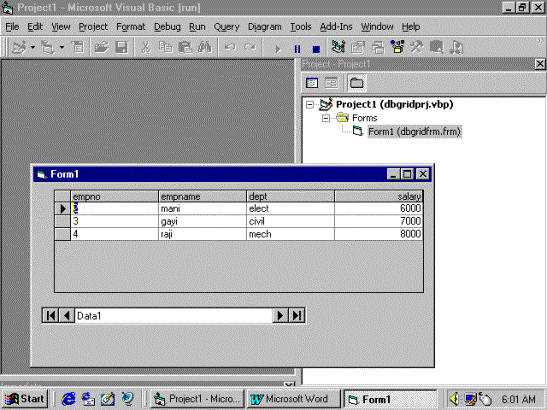

   Figure 11
