7. Animation Projects

2. Blinker Project:

In this project we draw two picture boxes and two timers in the design form.   Two command buttons are included to start and stop the blinking operations.  The blinker design window looks as in the figure 3.   The codes for the timers, form and the command buttons are entered in the code window as shown in the figure 3a.   The project is saved and given the Run command.   The run mode window looks as in the figure 4.   On clicking the start button, the two picture boxes begin to blink one in red and another in blue  colors.   On clicking the stop button blinking stops.

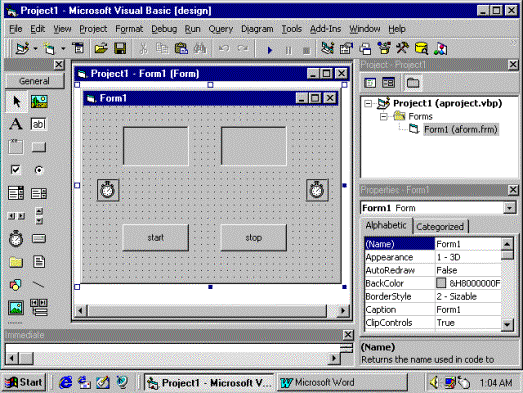

                             Figure 3

Option Explicit

Private color1 As Long

Private color2 As Long

Private Sub Command1_Click()

Timer1.Interval = 500

Timer2.Interval = 300

Timer1.Enabled = True

Timer2.Enabled = True

End Sub

Private Sub Command2_Click()

Timer1.Enabled = False

Timer2.Enabled = False

End Sub

Private Sub Timer1_Timer()

If color1 = vbRed Then

color1 = vbGreen

Else

color1 = vbRed

End If

Picture1.BackColor = color1

End Sub

Private Sub Form_Load()

color1 = vbRed

color2 = vbBlue

Picture1.BackColor = color1

Picture2.BackColor = color2

End Sub

               Figure 3a

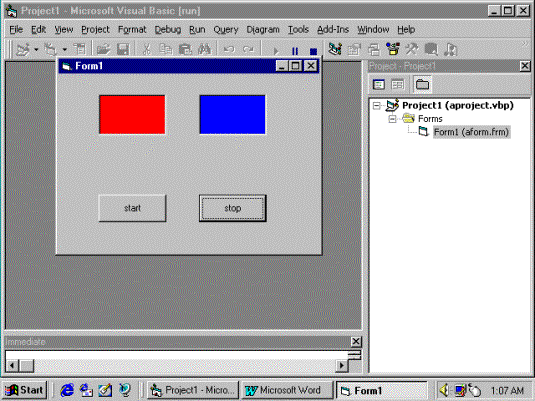

                            Figure 4
