3. Project using DriveListBox, FileListBox, DirListBoc and ImageBox:

In this project, the DriveListBox, the FileListBox and theDirListBox are coordinated to disk access without any programming.   One can select a gif file from the disk and load  it in the Image box.    The four controls are drawn into the design window and arranged as shown in the figure 6.   In this example we are going todisplayThe ImageBox control  simply appears as empty rectangle in the design mode.   At run time it will be loaded by the a  .gif files.   So change the Pattern property of the FileListBox from its default to *.gif.

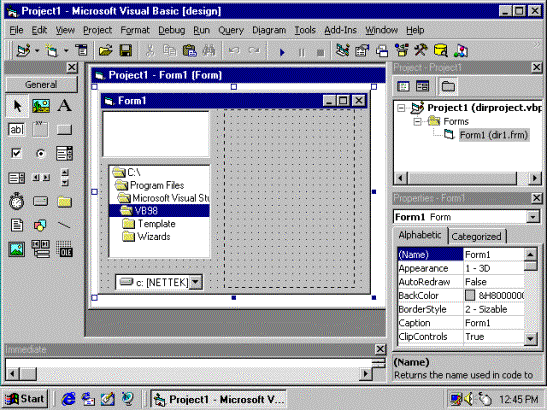

                                               Figure 6

Entering the Code:

Open the code window by double clicking the DirListBox.   The codes are entered as shown in the figure 6a.

Private Sub Dir1_Change()

File1.Path = Dir1.Path

End Sub

Private Sub Drive1_Change()

Dir1.Path = Drive1.Drive

End Sub

Private Sub File1_DblClick()

Image1.Picture = LoadPicture(File1.Path & "\" & File1.filename)

End Sub

             Figure 6a

The run mode  window looks as in the figure 7.   The gif file is selected by suitably changing the path list, directory list and finally selecting the required file.

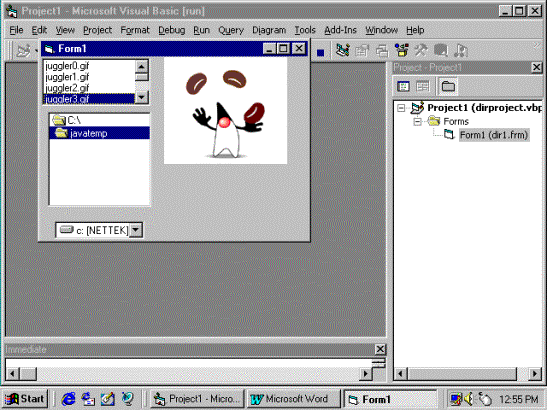

                              Figure 7

4.      Tabbed Dialog Control:

      Suppose you want to include a large number of controls in a single form you can divide the form into something like pages using this Tabbed Dialog Control or SS Tab Control.   When you drag the SS Tab Control in the form it presents a container with tabs at the top.   Each tab corresponds to a page of the form.   You can add any number of pages by simply increasing the value of the ‘the TabsPerRow’ property.   Each page can contain a number of components.   The figure 8 shows a form with 4 tabs with some controls placed in tab1.   Similarly you can place controls in other tabs or pages.

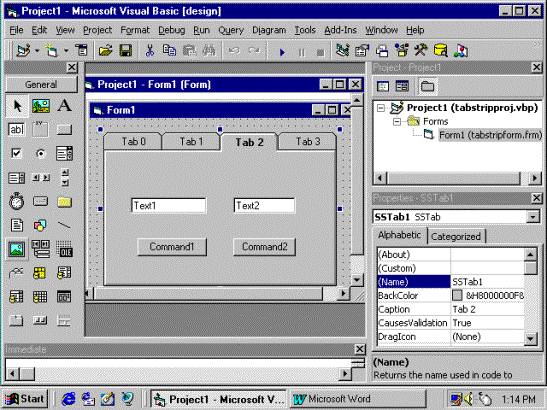

                              Figure 8
